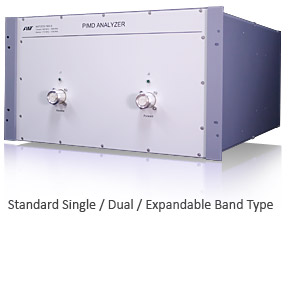

PIM Analyzer

The IMD (Inter Modulation Distortion) created in the passive components such as Antenna, Filters, Couplers, Dividers, Connectors and Cables become a harassing matter in the mobile communication network operators and maintenance engineers. Using AWT's various PIMD analyzer models, the manufacturers, designers and operators can reduce their time and cost to isolate those components before installation of the network systems. AWT has introduced the smallest and the most competitive PIM Analyzers with the lowest price in the globe.

    Key Feature

  • Output Power : +44dBm (max) (option : +46dBm)
  • Noise Floor : -140dBm (@Filter BW : 300Hz)
  • The smallest Dimensions : save the space
  • (Single and Dual band with same size)
  • Measurement Level : Up to -175dB
  • Convenient User Interface
  • Development & Production Modes & Various
  • Measurement Display (Time, Frequency, Sweep)
  • Wide Measurement Dynamic Range : more than 96dB
  • Low residual IM : -135dBm

    Key Feature

  • Measure the Distance to Faulty PIM Position (Option)
  • Measure the Distance to Faulty VSWR Position (Option)
  • Precise Distance Accuracy:+/-50cm(typ.), +/-1.5m(max)
  • Easy to use with convenient User Interface
  • Built in Self Test
  • Internal Embedded PC with 7〃or 10.2〃Touch Screen (TFT-LCD)
  • Compact Size
