Wireless Application

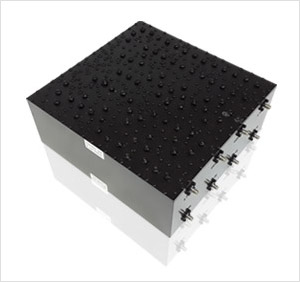

Our cavity filter products are available over the frequency range of DC - 50 GHz. These filters are
exceptionally suited for performance in 3G, 4G, LTE and WiMAX systems and provide low insertion loss,
high return loss and high band selectivity, in a compact mechanical package. Our devices are silver plated
where required for high-Q high performance applications. Input/output connectors come as K-type, SMA or
V-type as standard and customized interfaces are possible, as requested.
ProLine designs and manufactures a line of high Q and high rejection microwave and RF filters required for
military, space and commercial applications in the Ka, Ku and Q microwave frequency bands.
|
Band Pass Filters |
Duplexer/ Diplexer |
Band Rejection |
LPF & HPF |
| Part Number | Frequency (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, MHz) |
Max. Power (Watts) |
Size (mm) |
|---|---|---|---|---|---|---|---|
| PCD782F751B10M-1 | 777~787 746~756 |
1.5 | 0.5 | 18 | 80 @ 746~756 80 @ 777~787 |
50 | 108 x 130 x 25 |
| PCD897F942B35M-1 | 890~915 925~960 |
1.65 | 0.5 | 13 | 33 @ 925~960 21 @ 880~915 |
200 | 159 x 106 x 41 |
| PCD1950F2140B60M-1 | 1920~1980 2110~2170 |
1.0 | 0.7 | 18 | 70 @ 2110~2170 70 @ 1920~1980 |
10 | 78 x 44 x 33 |
| PCD1795F2045B170B250M-1 | 1710~1880 1920~2170 |
0.3 | - | 20 | 50 @ 1920~2170 50 @ 1710~1880 |
150 | 175 x 236 x 120 |
| PCD1950F2140B60M-1 | 1920~1980 2110~2170 |
1.0 | 0.7 | 18 | 70 @ 2110~2170 70 @ 1920~1980 |
10 | 78 x 44 x 33 |
| PCD1990F2180B20M-1 | 1980~2000 2170~21990 |
1.0 | 0.5 | 18 | 80 @ 2170~2190 80 @ 1980~2000 |
150 | 98 x 54.4 x 41 |
