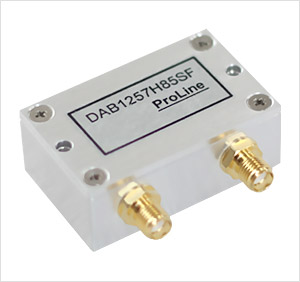

Housing Type(LPF & HPF)
ProLine offers a variety of standard and custom housing packages for all of our lumped element products. Mounting options come as N-type and SMA as standard and customer request input/output is possible for all designs.
|
| Part Number | Freq. Range (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, MHz) |
Connector | Size (mm) |
|---|---|---|---|---|---|---|---|
| PLLH068C100R70D-1 | DC~68 | 2.5 | 2.5 | 15 | 70 @ 100 | SMA(F) | 40 x 25 x 14 |
| PLLH165C194R40D-1 | DC~165 | 3.0 | 3.0 | 14 | 40 @ 194~500 | SMA(F) | 40 x 25 x 14 |
| PLLH453C500R25D-1 | DC~453 | 1.5 | 1.5 | 1.5 | 25 @ 500 45 @ 3000 |
SMA(F) | 60 x 25 x 14 |
