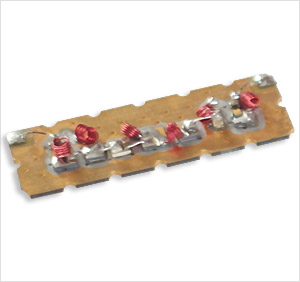

SMD Type(Band Pass)
Our lumped element filters provide broad band frequency solutions for surface mount solutions where a compact design is essential.
|
| Part Number | Frequency (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, MHz) |
Size (mm) |
|---|---|---|---|---|---|---|
| PLB070B20M-2 | 60~80 | 3.0 | 1.0 | 15 | 60 @ 25 60 @ 100 |
66 x30 x 18 |
| PLB075B28M-2 | 61~89 | 2.0 | 0.8 | 15 | 35 @ 50 30 @ 100 |
25.4 x 12.7 x 7.5 |
| PLB080B20M-1 | 70~90 | 2.5 | 0.5 | 15 | 55 @ 110 60 @ 50 |
47.0 x 15.0 x 8.5 |
| PLB105B30M-1 | 90~120 | 1.5 | 0.5 | 15 | 28 @ 72 | 25.4 x 12.7 x 7.5 |
| PLB125B30M-1 | 110~140 | 1.5 | 0.5 | 16 | 10 @ 100 45 @ 280 |
25.4 x 12.7 x 7.5 |
| PLB133B25M-1 | 110~140 | 2.0 | 0.5 | 15 | 30 @ 83.5 20 @ 183.5 |
13.0 x 12.0 x 7.0 |
| PLB140B20M-1 | 130~150 | 3.5 | 0.4 | - | 20 @ 70~100 20 @ 200~250 |
24.4 x 12.7 x 7.5 |
| PLB140B44M-1 | 118~162 | 2.5 | 1.0 | 15 | 25 @ 100 25 @ 180 |
47.0 x 15.0 x 8.5 |
| PLB195B40M-1 | 174.5~214.8 | 2.0 | 0.5 | 15 | 45 @ 103.6~143.1 | 25.6 x 15.0 x 7.5 |
| PLB280B20M-1 | 270~290 | 2.8 | 0.5 | 16 | 40 @ 220 40 @ 340 |
25.4 x 12.7 x 7.5 |
| PLB460B20M-1 | 450~470 | 3.5 | 0.5 | 15 | 48 @ 340 60 @ 580 |
13 x 12 x 7 |
| PLB460B160M-1 | 380~540 | 1.5 | 1.0 | 15 | 25 @ 660~900 40 @ 900~2000 |
25.4 x 12.7 x 7.5 |
| PLB700B600M-1 | 400~1000 | 3.0 | 1.2 | 10 | 4.0 @ 375 3.0 @ 1025 |
47.0 x 15.0 x 6.5 |
| PLB1000B600M-1 | 700~1300 | 2.5 | 1.5 | 5.0 | 20 @ 600 20 @ 1400 |
47.0 x 15.0 x 6.5 |
| PLB1000B1200M-1 | 400~1600 | 3.0 | 1.5 | 5.0 | 20 @ 250 20 @ 1750 |
47.0 x 15.0 x 6.5 |
| PLB1200B400M-1 | 1000~1400 | 1.3 | 0.3 | 15 | 65 @ 100~500 45 @ 2700~3100 |
25.4 x 12.7 x 7.5 |
| PLB1300B600M-1 | 1000~1600 | 2.5 | 1.2 | 10.0 | 18 @ 900 18 @ 1700 |
47.0 x 15.0 x 6.5 |
