Multiplexer

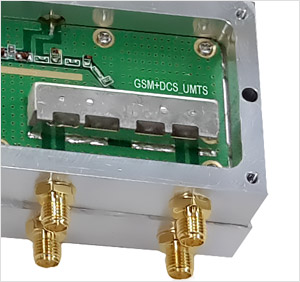

ProLine provides a range of broad and narrow band multiplexer devices which offer exceptional isolation, low insertion loss and high return loss performance. The connector input/outputs are available in either SMA or N-type as standard and all devices are provided in the most compact mechanical size.
| Part Number | Type | Frequency (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, GHz) |
Connector | Size (mm) |
|---|---|---|---|---|---|---|---|---|
| PDM4P-CELL-UP-PCS-1 | Quadplexer | 824~849 | 2.6 | 1.0 | 16 | 50 @ 869~894 | Housing-SMA | 108 x 45 x 19 |
| 869~894 | 50 @ 824~849 | |||||||
| 1850~1910 | 3.5 | 2.5 | 15 | 45 @ 1930~1990 | ||||
| 1930~1990 | 45 @ 1850~1910 | |||||||
| PDM4P-GSM-DCS-1 | Quadplexer | 890~915 | 2.7 | 1.0 | 16 | 53 @ 935~960 50 @ 1710~1785 50 @ 1805~1880 |
Housing-SMA | 108 x 45 x 19 |
| 935~960 | 53 @ 890~915 50 @ 1710~1785 50 @ 1805~1880 |
|||||||
| 1710~1785 | 3.7 | 2.5 | 15 | 60 @ 890~915 60 @ 935~960 50 @ 1805~1880 |
||||
| 1805~1880 | 60 @ 890~915 60 @ 935~960 50 @ 1710~1785 |
|||||||
| PDM4P-EGSM-DCS-1 | 4-plexers | 880~915 | 3.5 | 2.0 | 14 | 40 @ 925~960 50 @ 1710~1785 50 @ 1805~1880 |
Housing-SMA | 108 x 45 x 19 |
| 925~960 | 40 @ 880~915 50 @ 1710~1785 50 @ 1805~1880 |
|||||||
| 1710~1785 | 3.7 | 2.5 | 15 | 60 @ 890~915 60 @ 935~960 50 @ 1805~1880 |
||||
| 1805~1880 | 60 @ 890~915 60 @ 935~960 50 @ 1710~1785 |
|||||||
| PDM6P-GSM-DCS-UMTS | Dual Triplexer 6-plexer |
880~960 | 0.7 | 1.0 | 14 | 35 @ 1710~1880 35 @ 1920~2170 |
Housing-SMA | 166.3 x 47 x 19 |
| 1710~1880 | 2.5 | 1.0 | 35 @ 880~960 35 @ 1920~2170 |
|||||
| 1920~2170 | 3.0 | 1.5 | 35 @ 880~960 35 @ 1710~1880 |
