Defense & Aviation(LPF & HPF)

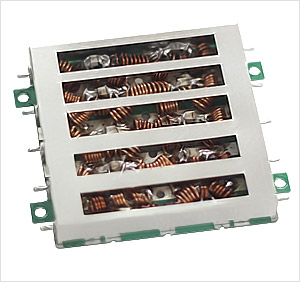

ProLine offers a variety of standard and custom housing packages for all of our lumped element products. Mounting options come as N-type and SMA as standard and customer request input/output is possible for all designs.
|
| Part Number | Frequency (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, MHz) |
Type | Size (mm) |
|---|---|---|---|---|---|---|---|
| PLBH070B20M-1 | 60~80 | 3 | 1 | 15 | 60 @ 25 60 @ 100 |
Housing-SMA | 66 x30 x 18 |
| TBD(*) | 450~470 | 3.5 | 0.5 | 15 | 48 @ 340 60 @ 580 |
SMD | 13 x 12 x 7 |
Note *: The part number will be fixed soon.
[Contact Us] if you have any inquiry or question.
