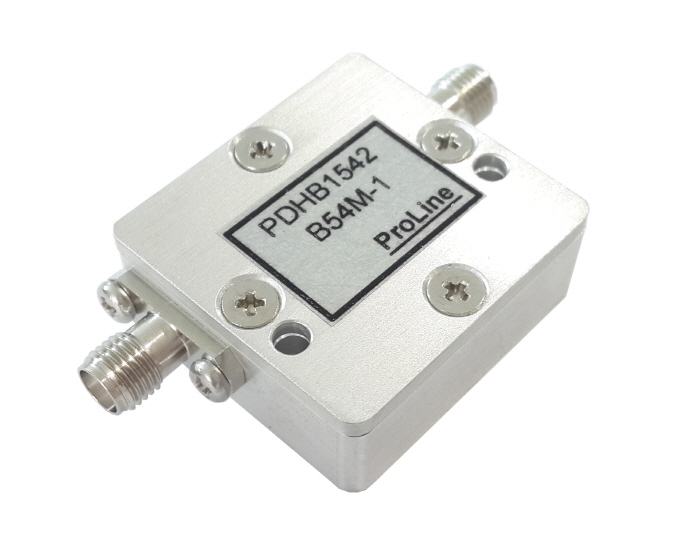

Housing Type (Duplexer/Diplexer)

    ProLine offers a variety of standard and customized packages for all products. Mounting options include Ntype and SMA as standard, and special customized connectors are also possible for all products.


Band Pass
Filters
Duplexer/
Diplexer


Part Number Frequency
(MHz)
I.L
(dB)
Ripple
(dB)
R.L.
(dB)
Attenuation
(dB, MHz)
Size
(mm)
PDHD897B942B35M-1 880~915
925~960
3.3 2.2 14 62 @ 925~960
62 @ 880~915
60 @ 1710~2000
100 x 80 x 30
PDHD920B2045B80F250M-1 880~960
1920~2170
0.5 0.3 18 60 @ 1920~2170
62 @ 880~960
56 x 60 x 19
PDHD1795B2045B170F250M-1 1710~1880
1920~2170
2.3 1.2 14 35 @ 1920~2170
35 @ 1710~1880
56 x 60 x 19
[Contact Us] if you have any inquiry or question.
