Housing Type(Band Pass)

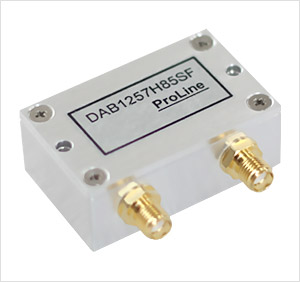

ProLine offers a variety of standard and custom housing packages for all of our lumped element products. Mounting options come as N-type and SMA as standard and customer request input/output is possible for all designs.
|
| Part Number | Frequency (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, MHz) |
Connector | Size (mm) |
|---|---|---|---|---|---|---|---|
| PLBH076B03M-1 | 74~77.5 | 3.5 | 0.5 | 15 | 50 @ 50.75 50 @ 100.75 |
N(F) | 86 x37 x 30 |
| PLBH080B32M-1 | 64~96 | 2.5 | 1.0 | 15 | 60 @ 40 60 @ 120 |
In-SMA(F) Out-SMA(M) |
61 x 25 x 14 |
| PLBH155B19M-1 | 146~165 | 3.5 | 1.0 | 15 | 60 @ 120 60 @ 190 |
In-N(M) Out-N(F) |
64.5 x 37 x 32 |
| PLBH168B02M-1 | 167.5~169.5 | 4.0 | 0.5 | 15 | 50 @ 143.5 50 @ 193.5 |
N(F) | 86 x 37 x 30 |
| PLBH336B10M-1 | 331~341 | 3.5 | 1.0 | 15 | 40 @ 276 40 @ 396 |
In-N(M) Out-N(F) |
64.5 x 37 x 32 |
| PLBH395B30M-1 | 380~410 | 3.5 | 1.0 | 15 | 50 @ 305 40 @ 485 |
In-N(M) Out-N(F) |
64.5 x 37 x 32 |
[Contact Us] if you have any inquiry or question.
