Telecomm (Band Pass)

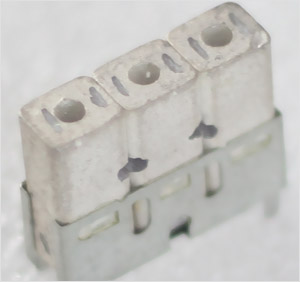

ProLine provides both standard and customized high performance band pass filter solutions for telecommunications applications. Our designs are compact and robust, and specified for high performance over a wide temperature range. Our designs are subject to rigorous environmental testing and suitable for outdoor environments.
|
| Part Number | Frequency (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, MHz) |
Size (mm) |
|---|---|---|---|---|---|---|
| PDD763B793B10M-1 | 758~768 788~798 |
2.0 | 0.8 | 16 | 60 @ 788~798 58 @ 758~768 |
42 x 17 x 9.5 |
| PDD833B878B32M-1 | 817~849 862~894 |
3.0 3.5 |
1.5 | 17 | 40 @ 862~894 40 @ 1710~1930 ---------------------- 40 @ 817~849 40 @ 1710~1930 |
43 x 30 x 9.5 |
| PDD836B881B25M-1 | 824~849 869~894 |
2.0 | 1.5 | 15 | 60 @ 869~894 60 @ 824~849 |
65 x 20 x 11.5 |
| PDD1210B1568B106F100M-1 | 1157~1263 1518~1618 |
0.5 | 0.3 | 15 | 30 @ 1525 30 @ 1591 ---------------------- 30 @ 1160 50 @ 1243 |
26.4 x 16 x 5.5 |
| PDD1207B1565B42F40M-1 | 1165~1250 1525~1606 |
1.2 | 0.5 | 15 | 40 @ 1100 40 @ 1650 |
42 x 17 x 9.5 |
| PDD1227B1575B24M-1 | 1215~1239 1563~1587 |
1.5 | 0.5 | 17 | 50 @ 1563~1587 50 @ 1215~1236 |
42 x 17 x 9.5 |
| PDD1539B1650B42F49M-1 | 1518~1560 1626~1675 |
0.9 | 0.5 | 14 | 60 @ 1626~1675 60 @ 1518~1560 |
42 x 8.1 x 7.8 |
