High Frequency

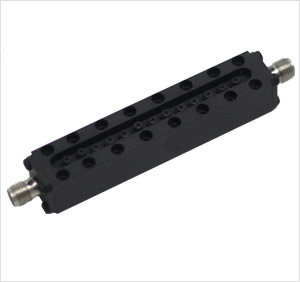

Our cavity filters include bandpass, diplexer, low pass and high pass and band reject devices that are manufactured for both low and high frequency applications. Our high frequency high performance range provides cavity filters up to 80 GHz, ceramic filters to 6 GHz and lumped element (LC) filters to 4 GHz. We also provide a complimentary range of connectors, cables and test and modulation equipment for general systems requirements and testing.
| Part Number | Frequency (GHz) |
Microwave Bands (GHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, GHz) |
Interface | Size (mm) |
|---|---|---|---|---|---|---|---|---|
| PCB11700H1500M-1 | 10.95~12.45 | X | 2.0 | 1.0 | 20 | 80 @ DC~10.25 60 @ 10.25~10.4 80 @ 13~16.55 |
SMA(F) | 108 x 17 x 15 |
| PCB11900H600M-1 | 11.6~12.2 | X | 1.5 | 0.8 | 20 | 80 @ DC~10 40 @ 12.4~13.2 80 @ 13.2~21.6 |
SMA(F) | 79 x 16 x 13 |
| PCB12475H550M-1 | 12.2~12.75 | Ku | 2.0 | 1.0 | 15 | 20 @ 11.5~12.15 20 @ 12.8~13.45 |
SMA(F) | 90 x 16 x 13 |
| PCB13125H800M-1 | 12.7~13.5 | Ku | 2.0 | 1.3 | 15 | 80 @ DC~11.8 30 @ 13.7~13.8 45 @ 13.8~15.3 40 @ 23.6 |
SMA(M/F) | 90 x 16 x 13 |
| PCB18250H1200M-1 | 18.25~19.45 | K | 1.6 | 0.6 | 15 | 80 @ DC~17.3 50 @ 17.95 50 @ 19.75 80 @ 20.4~34.6 |
K(M/F) | 108 x 16 x 11 |
| PCB18725H2050M-1 | 17.7~19.75 | K | 2.0 | 1.2 | 15 | 55 @ DC~13.75 55 @ 20.1~20.6 |
K(M/F) | 110 x 16 x 11 |
| PCB19150H1100M-1 | 18.6~19.7 | K | 1.6 | 0.6 | 18 | 50 @ 18.3 50 @ 20~20.65 80 @ 20.6~35.3 |
K(M/F) | 108 x 16 x 11 |
| PCB22500H3080M-1 | 20.96~24.04 | K | 2.2 | 1.0 | 11 | 60 @ 17.5~19 40 @ 20~20.3 75 @ 26~30 70 @ 30~40 |
K(M/F) | 83 x 14 x 11 |
| PCB26030H1160M-1 | 25.45~26.61 | K | 2.0 | 0.6 | 11 | 80 @ DC~24.81 80 @ 27.25~31.44 50 @ 46.2~53.22 |
K(M) | 77.5 x 12 x 11 |
| PCB28800H600M-1 | 28.5~29.1 | Ka | 2.3 | 1.0 | 15 | 80 @ DC~27.75 40 @ 29.45~30.65 60 @ 41.325 |
K(M/F) | 68.2 x 16 x 11 |
| PCB29250H3500M-1 | 27.5~31 | Ka | 1.7 | 1.0 | 11 | 80 @ DC~25 80 @ 25~26.6 70 @ 32.6~40 |
K(M/F) | 70 x 15 x 12 |
| PCB30500H1G-1 | 30~31 | Ka | 2.0 | 1.0 | 11 | 80 @ 29~29.5 80 @ 31~31.5 |
K(F) | 100 x 19 x 14 |
| PCB31500H3080M-1 | 29.96~33.04 | Ka | 2.2 | 0.6 | 11 | 80 @ DC~28 80 @ 35~56 |
K(M/F) | 63 x 13 x 13 |
| PCB44500H2100M-1 | 43.45~45.55 | Q | 2.5 | 0.6 | 11 | 50 @ 46.51~48.56 30 @ 49.54~51.66 |
V(M) | 77 x 14 x 10 |
