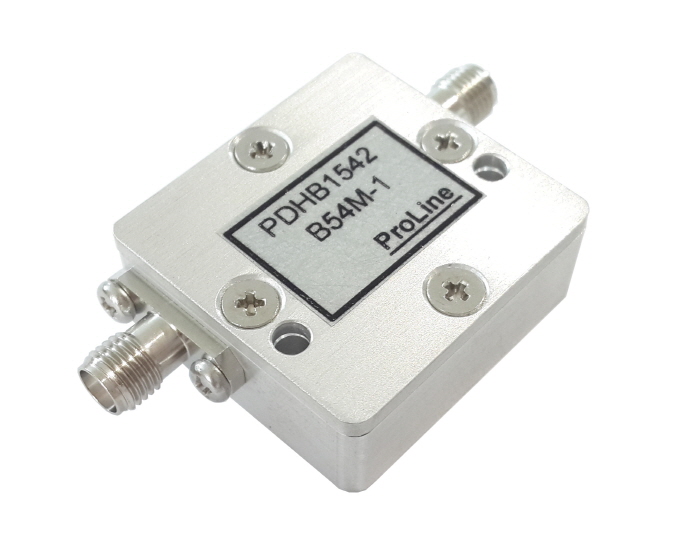

Housing Type (Duplexer/Diplexer)
ProLine offers a variety of standard and customized packages for all products. Mounting options include Ntype and SMA as standard, and special customized connectors are also possible for all products.
|
| Part Number | Frequency (MHz) |
I.L (dB) |
Ripple (dB) |
R.L. (dB) |
Attenuation (dB, MHz) |
Size (mm) |
|---|---|---|---|---|---|---|
| PDHD897B942B35M-1 | 880~915 925~960 |
3.3 | 2.2 | 14 | 62 @ 925~960 62 @ 880~915 60 @ 1710~2000 |
100 x 80 x 30 |
| PDHD920B2045B80F250M-1 | 880~960 1920~2170 |
0.5 | 0.3 | 18 | 60 @ 1920~2170 62 @ 880~960 |
56 x 60 x 19 |
| PDHD1795B2045B170F250M-1 | 1710~1880 1920~2170 |
2.3 | 1.2 | 14 | 35 @ 1920~2170 35 @ 1710~1880 |
56 x 60 x 19 |
