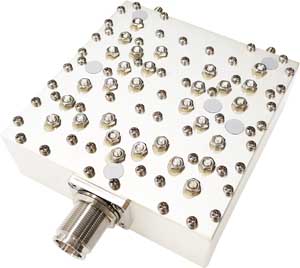

LTE Filter, Duplexer/Diplexer

    ProLine provides all LTE band products offering outstanding isolation, low insertion loss and high return loss performance. The connector input/outputs are available in either SMA, N-type or 4.3-10 as standard and all devices are provided in the most compact mechanical size.


LTE Band Part Number Frequency
(MHz)
I.L
(dB)
Ripple
(dB)
R.L.
(dB)
Attenuation
(dBc, MHz)
Connector Remark Size
(mm)
Band 1 PCD1950F2140B60M-4 1920~1980
2110~2170
3.0 - 18 60@1884.5~1915.7
60@2010~2025
N(F) IMD:158
dbc
196x128x30
Band 1 PCD1950F2140B60M-5 1920~1980
2110~2170
0.3 0.2 18 60@2110~2170
60@1920~1980
N(F) - 167x87x26
Band 1 PCD1950F2140B60M-7 1920~1980
2110~2170
0.5 0.2 20 90@2110~2170
90@1920~1980
N(F) P:200W 120x132x38
Band 1 PCD1950F2140B60M-9 1920~1980
2110~2170
1.0 - 22 100@2110~2170
100@1920~1980
SMA(F) P:300W 122x93x31
Band 1 PCD1950F2140B60M-12 1920~1980
2110~2170
1.0 0.8 18 90@2110~2170
90@1920~1980
SMA(F) P:300W 84x110x31
Band 2 PCD1880F1960B60M-2 1850~1910
1930~1990
0.6 0.4 18 40@1930~1990
40@1850~1910
N(F)
SMA(F)
P:20W 180x82x66
Band 2 PCD1880F1960B60M-3 1850~1910
1930~1990
1.0 0.8 18 75@1930~1990
75@1850~1910
N(F) - 185x155x32
Band 2 PCD1880F1960B60M-4 1850~1910
1930~1990
1.5 1.0 20 60@1930~1990
60@1850~1910
SMA(F) - 99x81x27
Band 2 PCD1880F1960B60M-5 1850~1910
1930~1990
1.0 0.6 18 20@1930~1990
20@1850~1910
SMA(F) P:20W 65x82x25
Band 3 PCD1747F1842B75M-3 1710~1785
1805~1880
1.0 0.7 20 80@1805~1880
80@1710~1785
4.3-10(F) P:600W 115x119x46
Band 3 PCD1747F1842B75M-4 1710~1785
1805~1880
1.0 0.7 20 80@1805~1880
80@1710~1785
4.3-10(F) IMD:145
P:600W
124x120x53
Band 3 PCD1747F1842B75M-6 1710~1785
1805~1880
3.0 - 18 100@1500~1620 N(F) IMD:158
dbc
223x140x30
Band 3 PCD1747F1842B75M-5 1710~1785
1805~1880
1.0 - 18 100@1805~1880
100@1710~1785
N(F) P:600W 213x144x34
Band 3 PCD1747F1842B75M-9 1710~1785
1805~1880
1.0 0.7 18 80@1805~1880
80@1710~1785
N(F) - 134.5x111x34
Band 3 PCD1747F1842B75M-13 1710~1785
1805~1880
1.0 0.8 18 60@1805~1880
60@1710~1785
SMA(F) - 116.5 x 102 x 30
Band 4 PCD1732F2132B45M-3 1710-1755
2110-2155
3.0 - 18 100@1500~1620
100@2nd Harmonic
80@3rd Harmonic
N(F) 158
dbc
140x137x29
Band 4 PCD1732F2132B45M-4 1710-1755
2110-2155
0.8 0.5 18 80 @ 2110~2155
80 @ 1710~1755
7/16(F) P:100W 96x66x47
Band 4 PCD1732F2132B45M-7 1710-1755
2110-2155
1.0 0.5 15 65@DC~1640
55@2155~3980
------------------------
75@DC~1755
55@2190~3980
N(F) Isol:90dB
50W CW
130x99x35
Band 4 PCD1732F2132B45M-8 1710-1755
2110-2155
1.0 0.8 20 80@2110~2155
80@1710~1755
SMA(F) P:100W 58x120x32
Band 5 PCD836F881B25M-3 824-849
869-894
1.0 0.6 15 75@DC~750
75@894~2000
------------------------
75@DC~849
75@968~2000
N(F) Isol:75dB
50W CW
118x110x58
Band 5 PCD836F881B25M-4 824-849
869-894
1.0 0.8 18 90@869~894
90@824~849
N(F) - 240x166x59
Band 5 PCD836F881B25M-5 824-849
869-894
0.8 0.7 18 90@869~894
90@824~849
N(F) - 148x141x53
Band 5 PCD836F881B25M-6 824-849
869-894
1.5 0.8 20 65@869~894
65@824~849
N(F) - 88x111x44
Band 5 PCD836F881B25M-9 824-849
869-894
1.2 0.5 17 85@869~894
85@824~849
SMA(F) 30W CW 180x58x41
Band 7 PCD2535F2655B70M-1 2500-2570
2620-2690
0.9 0.7 20 85@2620~2690
85@2500~2570
4.3-10(F) P:600W
IMD:145
dbc
124x120x39
Band 7 PCD2535F2655B70M-3 2500-2570
2620-2690
1.2 0.8 20 85@2620~2690
85@2500~2570
N(F) - 125x128x32
Band 7 PCD2535F2655B70M-4 2500-2570
2620-2690
1.0 0.7 18 90@2620~2690
80@2500~2570
N(F) P:100W 126x122.5x31
Band 7 PCD2535F2655B70M-7 2500-2570
2620-2690
1.2 0.8 20 80@2620~2690
80@2500~2570
N(F) P:20W 90x95x28
Band 7 PCD2535F2655B70M-5 2500-2570
2620-2690
3.0 - 18 90@2400~2483
100@2nd Harmonic
80@3rd Harmonic
N(F) - 178x114x22
Band 8 PCD897F942B35M-2 880-915
925-960
1.25 - 15 75@925~2000
75@DC~915
N(F) 50W CW 239.5x201.4x63
Band 8 PCD897F942B35M-4 880-915
925-960
1.5 1.2 15 100@925~960
100@880~915
SMA(F) 50W CW 170x127x85
Band 8 PCD897F942B35M-3 880-915
925-960
1.0 0.7 15 65@DC~845
75@925~2000
------------------------
75@DC~915
75@1050~2000
N(F) 50W CW 190x190x58
Band 8 PCD897F942B35M-9 880-915
925-960
2.0 - 18 100 - Isolation
100@2nd Harmonic
80@3rd Harmonic
N(F) 158 239x155x43
Band 8 PCD897F942B35M-5 880-915
925-960
1.0 0.5 15 60@925~2000
60@DC~915
SMA(F) - 150x144x60
Band 8 PCD897F942B35M-6 880-915
925-960
1.5 1.0 20 65@925~960
65@880~915
SMA(F) - 110x100x60
Band 9 PCD1767F1862B35M-1 1749.9-1784.9
1844.9-1879.9
1.0 0.5 18 50@1844.9-1879.9
50@1749.9-1784.9
SMA(F) 5W CW 69.5x96x33
Band 10 PCD1740F2140B60M-1 1710-1770
2110-2170
1.0 0.5 15 65@DC~1640
55@2170~3980
------------------------
75@DC~1770
55@2190~3980
N(F) Isol:90
Humid:95%
130x99x35
Band 10 PCD1740F2140B60M-3 1710-1770
2110-2170
1.0 0.7 18 75@2110~2170
75@1710~1770
N(F) - 78x95x30
Band 11 PCD1440F1488B25M-1 1427.9-1452.9
1475.9-1500.9
1.0 0.7 18 75@1475.9~1500.9
75@1427.9~1452.9
N(F) - 97x102x46
Band 11 PCD1440F1488B25M-3 1427.9-1452.9
1475.9-1500.9
2.0 1.0 15 55@1475.9~1500.9
55@1427.9~1452.9
N(F) 20W CW 84x104x41.5
Band 12 PCD707F737B18M-1 698-716
728-746
1.2 0.5 18 30@728~746
30@698~716
N(F) 50W 56x118x73
Band 12 PCD707F737B18M-2 698-716
728-746
1.2 0.8 20 90@728~746
90@698~716
SMA(F) 50W 133x125x60
Band 12 PCD707F737B18M-3 698-716
728-746
1.0 0.8 18 65@728~746
65@698~716
7/16 DIN(F) 40W CW 147x152x48
Band 12 PCD707F737B17M-5 699-716
729-746
3.0 - 18 35 @ 717~728
100 @ 2nd Harmonic
80 @ 3rd Harmonic
N(F) 158 226x164.5x46
Band 20 PCD806F847B30M-3 791-821
832-862
1.1 0.8 20 80 @ 832~862
80 @ 791~821
N(F) 400W 124 x 120 x 56
Band 20 PCD806F847B30M-4 791-821
832-862
1.6 1.0 18 85 @ 832~862
90 @ 791~821
SMA(F) 400W 200 x 65 x 54
Band 20 PCD806F847B30M-5 791-821
832-862
1.1 0.7 20 80@832~862
80@791~821
4.3-10(F)
SMA(F)
IMD:145
400W
124x120x53
Band 20 PCD806F847B30M-6 791-821
832-862
1.0 0.8 20 90@832~862
80@791~821
4.3-10(F)
SMA(F)
IMD:145
400W
145x120x53
Band 20 PCD806F847B30M-2 791-821
832-862
1.0 0.6 17 40@832~862
40@791~821
N(F) 50W CW 114x96x60
Band 20 PCD806F847B30M-8 791-821
832-862
1.5 0.8 18 70@832~862
70@791~821
N(F) IMD:140
30W CW
132x126x39
Band 25 PCD1882F1962B65M-1 1850-1915
1930-1995
3.0 - 18 100-Isolation
100@2nd Harmonic
80@3rd Harmonic
N(F) IMD:158
dbc
223x140x26
Band 26 PCD831F876B35M-2 814-849
859-894
2.0 - 18 100-Isolation
100@2nd Harmonic
80@3rd Harmonic
N(F) 158
dbc
239x155x43
Band 31 PCD455F465B5M-1 452.5-457.5
462.5-467.5
1.5 0.6 20 80@462.5~467.5
80@452.5~457.5
N(F) 75W Avg 164x158x70
Band 31 PCD455F465B5M-3 452.5-457.5
462.5-467.5
2.0
1.8
0.5
0.25
18 85@462.5~467.5
85@452.5~457.5
SMA(F) - 130x133.5x66
Band 31 PCD455F465B5M-5 452.5-457.5
462.5-467.5
1.5 0.6 20 80@462.5~467.5
90@452.5~457.5
4.3-10(F)
SMA(F)
IMD:155
100W Avg
164x182x76
Band 68 PCD713F768B30M-5 698-728
753-783
1.1 0.6 20 80 @ 753~783
85 @ 698~728
4.3-10(F)
SMA(F)
IMD:155
500W
120x124x53
Band 68 PCD700F755B5M-1 698-703
753-758
1.0 0.3 20 80@753~758
85@698~703
4.3-10(F)
SMA(F)
IMD:140
500W
120x98x53
