Multiplexer

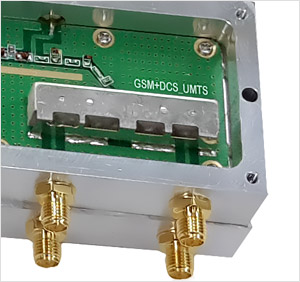

    ProLine provides a range of broad and narrow band multiplexer devices which offer exceptional isolation, low insertion loss and high return loss performance. The connector input/outputs are available in either SMA or N-type as standard and all devices are provided in the most compact mechanical size.


Part Number Type Frequency
(MHz)
I.L
(dB)
Ripple
(dB)
R.L.
(dB)
Attenuation
(dB, GHz)
Connector Size
(mm)
PDM4P-CELL-UP-PCS-1 Quadplexer 824~849 2.6 1.0 16 50 @ 869~894 Housing-SMA 108 x 45 x 19
869~894 50 @ 824~849
1850~1910 3.5 2.5 15 45 @ 1930~1990
1930~1990 45 @ 1850~1910
PDM4P-GSM-DCS-1 Quadplexer 890~915 2.7 1.0 16 53 @ 935~960
50 @ 1710~1785
50 @ 1805~1880
Housing-SMA 108 x 45 x 19
935~960 53 @ 890~915
50 @ 1710~1785
50 @ 1805~1880
1710~1785 3.7 2.5 15 60 @ 890~915
60 @ 935~960
50 @ 1805~1880
1805~1880 60 @ 890~915
60 @ 935~960
50 @ 1710~1785
PDM4P-EGSM-DCS-1 4-plexers 880~915 3.5 2.0 14 40 @ 925~960
50 @ 1710~1785
50 @ 1805~1880
Housing-SMA 108 x 45 x 19
925~960 40 @ 880~915
50 @ 1710~1785
50 @ 1805~1880
1710~1785 3.7 2.5 15 60 @ 890~915
60 @ 935~960
50 @ 1805~1880
1805~1880 60 @ 890~915
60 @ 935~960
50 @ 1710~1785
PDM6P-GSM-DCS-UMTS Dual Triplexer
6-plexer
880~960 0.7 1.0 14 35 @ 1710~1880
35 @ 1920~2170
Housing-SMA 166.3 x 47 x 19
1710~1880 2.5 1.0 35 @ 880~960
35 @ 1920~2170
1920~2170 3.0 1.5 35 @ 880~960
35 @ 1710~1880
